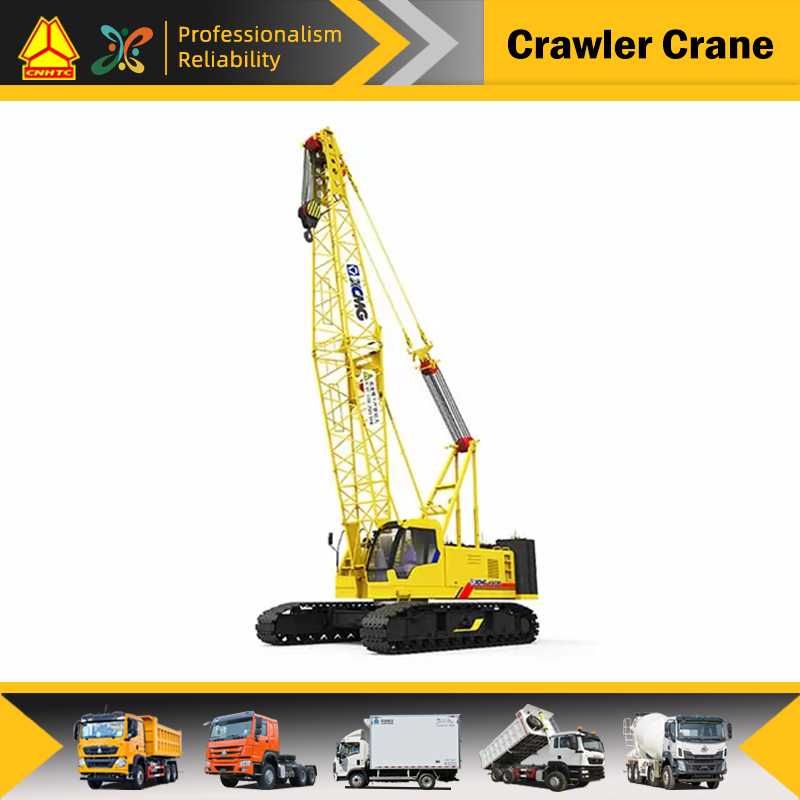

XCMG XGC85 Crawler Crane

Covering a wide range of vehicle models including dump trucks, tractors, etc., we provide a full-process car buying experience with a mature sales team, remote technical services and after-sales guarantees. For detailed consultation, please feel free to contact us online at any time.



+86 532 86998158



Lizihao@cnxiangcai.com

Classification

Hoisting Machinery

PRODUCT DESCRIPTION

XCMG Official Hot Sale 85 Ton Lifting Equipment Crawler Crane Xgc85 Price

Optimized design of transport and assembly/ disassembly
Basic machine is an integrated transport design, without disassembling track frame and boom base, greatly save transport costs and improve the assembly/disassembly efficiency. Unique A-frame gantry self-erection technology, no need of cylinder can achieve self- erection, to realize crane quick assembly. Single counterweight weighing no more than 6t, small auxiliary lifting equipment can achieve complete counterweight assembly.

Opimized hydraulic system design
Integrated design to reduce failure points, while reserve open space for assembly/ disassembly and maintenance. Use of highly integrated LUDV main valve, with the functions of multi-complex operation, control of combined flow, high/low speed selection, to ensure operation efficiency. Optional unique independent bypass filtration in the industry, strong magnetic adsorption device, strengthened hydraulic system filtration, and anti-emulsifying ability.

Main/ auxiliary hook one-key-switch-over function

One-key-switch is used to easily achieve main/auxiliary hook switch-over, for wider range of applications.

Item	Unit	Parameters
Rated lifting capacity
Boom working condition	t	85
Boom single pulley working condition	t	8
Fixed jib working condition	t	12
Load moment
Max. Load moment	t.m	341
Dimension
Max. size of single unit for transport (L×W×H)	m	13.05×3.45×3.4
Main boom length	m	13~58
Main boom luffing angle	°	-3~80
Fixed jib length	m	7~19
Speed
Max. single line speed of hoist system	m/min	128
Max. single line speed of main luffing system	m/min	70
Max. slewing speed	r/min	2
Max. travel speed	km/h	0.9
Gradeability	%	30
Power
Engine Model	/	SC9D272G2
Engine rated power	kW/(r/min)	200/2200
Weight
Total vehicle mass	t	71.5
Max. Mass of single unit in transport state	t	41.2
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice
