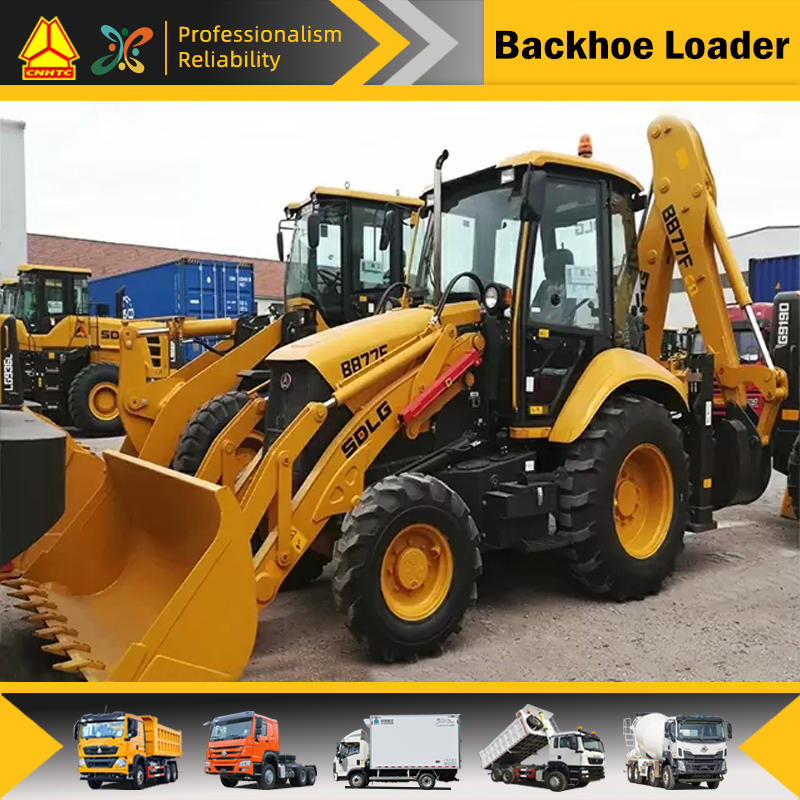

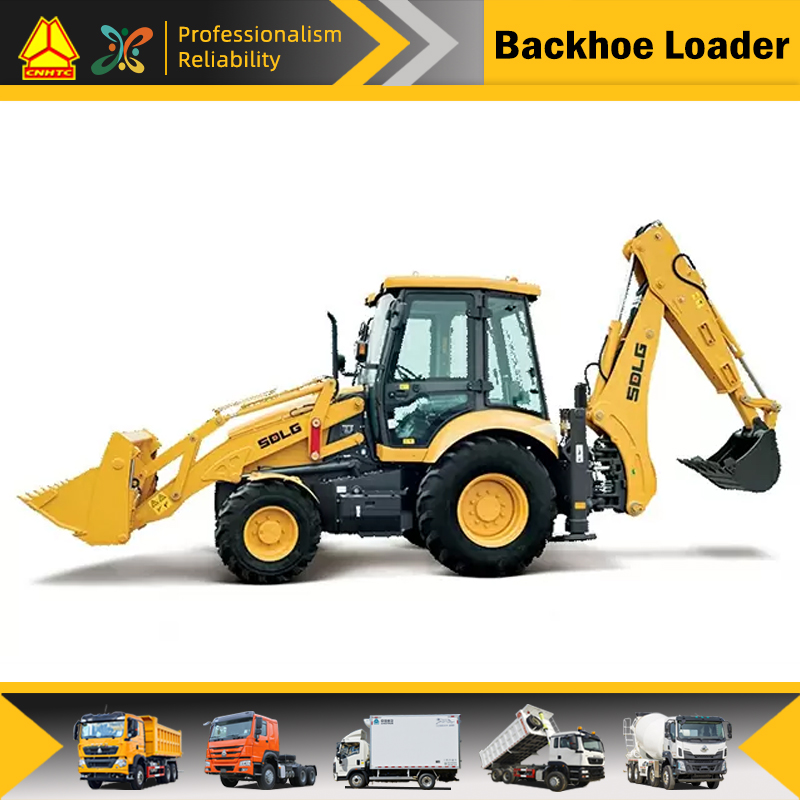

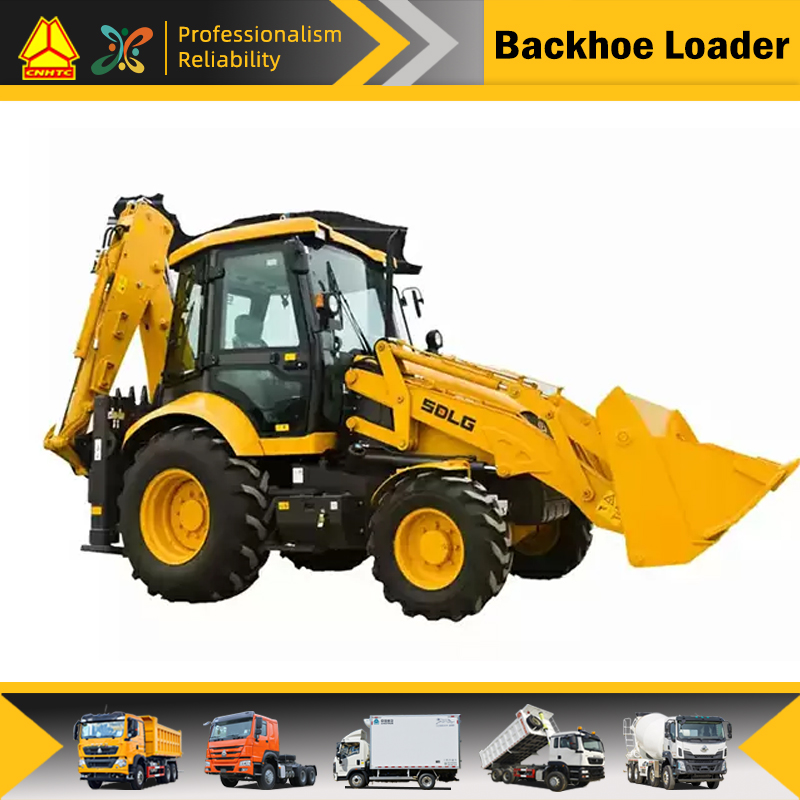

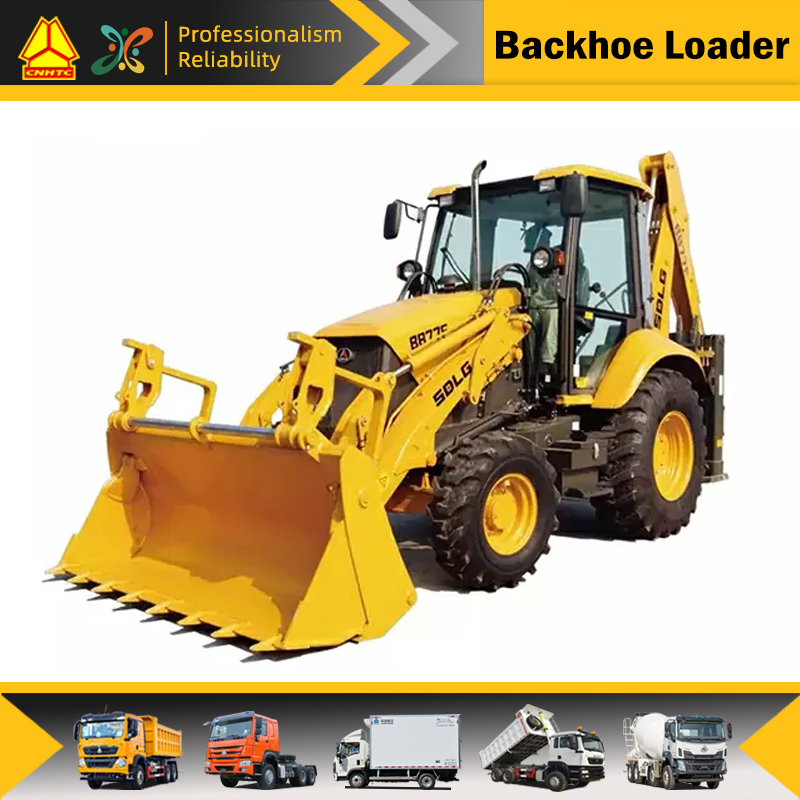

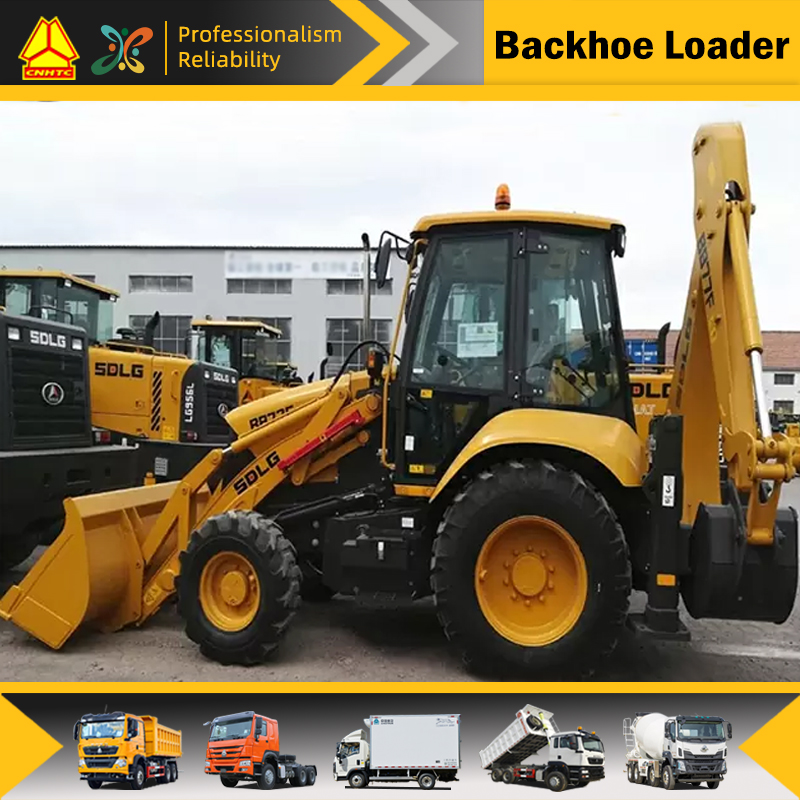

SDLG B877 Backhoe Loader

Covering a wide range of vehicle models including dump trucks, tractors, etc., we provide a full-process car buying experience with a mature sales team, remote technical services and after-sales guarantees. For detailed consultation, please feel free to contact us online at any time.

Classification
Earth-moving Machinery

PRODUCT DESCRIPTION


B877 is a small multi-function engineering machine newly designed with high cost performance and is widely applied in various building construction engineering, such as road construction and caring, cable laying, electricity and airport engineering, municipal construction and quarrying work, in city and countryside.

1. Low-speed and large-torque Weichai engine meeting the requirement of China II emission standard is provided, with low fuel consumption, strong power and high reliability.

2. Electrically-controlled shift transmission case of famous international brand is used, with four front gear positions and four rear gear positions and is easy and quick to operate; international famous brand of drive axle is configured and is provided with electrically-controlled differential lock with high traffic ability; closed wet double brake is used, with large bearing capacity, high reliability and is more suitable for various bad operating condition.

3. Load-sensing full hydraulic steering system is used, with light and quick steering and stable and reliable performance and is stable to operate; hydraulic system with confluent and split logic functions is provided to realize compound action of excavation.

4. Reinforced excavating movable arm and bucket rod are used, with high reliability; Movable arm swing has damping buffer, which can ensure a stable and successful operation; It is optional to equip standard bucket rod or telescopic bucket rod to meet various demand of customer.

5. The integrated LCD is adopted, which ensures high human-machine interaction; the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element.

6. The cab is provided with full height glazing all round, wide visual field and standard air conditioning, which ensures a comfortable driving environment.

7. Many excavating or loading auxiliary appliances are provided to meet the various demand of user.


SDLG B877 BACKHOE LOADER SPECIFICATIONS
B877 is as small multi function engineering machine newly designed with high cost performance and is widely applied in various building construction engineering, such as road construction and caring, cable laying, electricity and airport engineering, municipal construction and quarrying work, in city and countryside.
OVERALL DIMENSION
Dimension5899x2350x3650mmOverall width (outside of rear wheel)2240mm
Max dumping height2176mmDumping distance819mm
Min ground clearance346mmMax digging depthStandard boom 4327mmOption: Telescopic boom 5352mm
Max digging radiusStandard boom 5340mmOption:Telescopic boom 6305mmWheel tread (front/rear)1928/1790mm
Wheelbase2170mmMin turning radius (outside of front wheel)4178mm
Horizontal crossing radius (outside of bucket)5426mm----
OVERALL PARAMETER
Overall working weight8400kgLoading bucket capacity1m3
Rated load1800kgMax tractive force≥82kN
Digging bucket capacity0.18m3Max digging force≥56kN
Max breakout force≥60kNMax gradeability22°
ENGINE
ModelWEICHAI WP4G95E221TypeInline,water cooled,direct injection
Rated power/speed70kw/2200r/minEngine displacement4.5L
Cylinder bore/stroke105/130mmMin fuel consume ratio≤225g/kW.h
Max torque420N.mEmission standardEuro2
TRANSMISSION SYSTEM
Torque converterSingle stage single phase centripetal turbineTransmission typeSynchronized shift
Gearsforward 4 reverse 4Speed at forward/reverse gear I0-6km/h
Speed forward /reverse gear II0-10km/hSpeed at forward gear III0-20km/h
Speed at forward gear IV0-38km/h----
TYRES
Front tyres12.5/80-18 14PRTL IMP600Rear tyres18.4-26-12PR R-4
BRAKE SYSTEM
Service brake typeVacuum booster wet brakeParking brake typeManual disc brake
STEERING SYSTEM
TypeLoad sensing full hydraulic articulated steeringSystem pressure15Mpa
HYDRAULIC SYSTEM OF LOADING IMPLEMENT
System working pressure22.5MpaTotal time≤7.8s
HYDRAULIC SYSTEM OF DIGGING IMPLEMENT
System working pressure22.5Mpa----
FILL CAPACITY
Fuel135LHydraulic oil185L
Engine10LTransmission20L
Drive axle7.5+2*0.8/15LBraking system2L
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice
