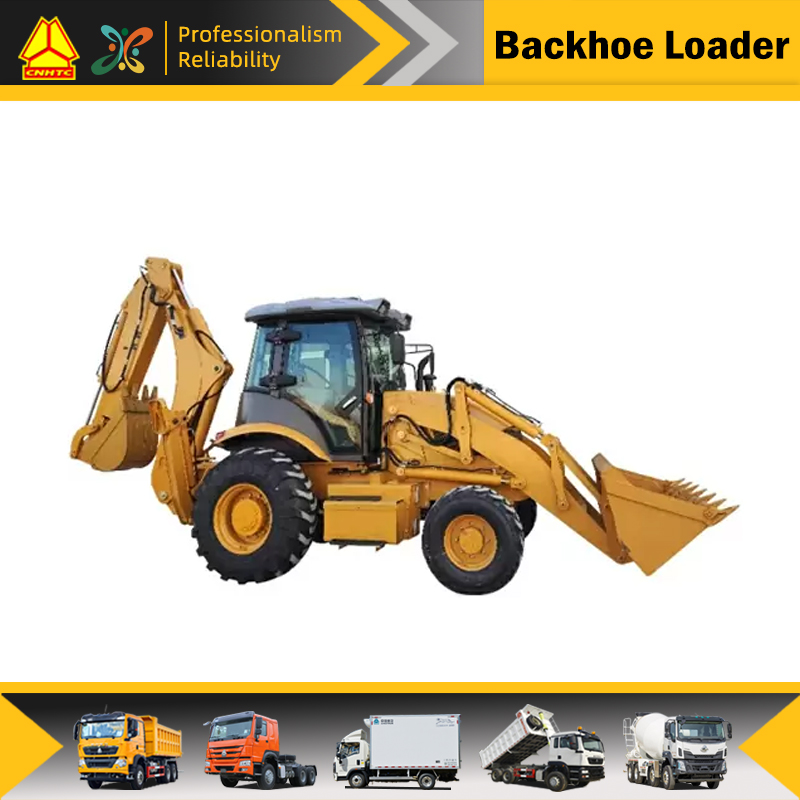

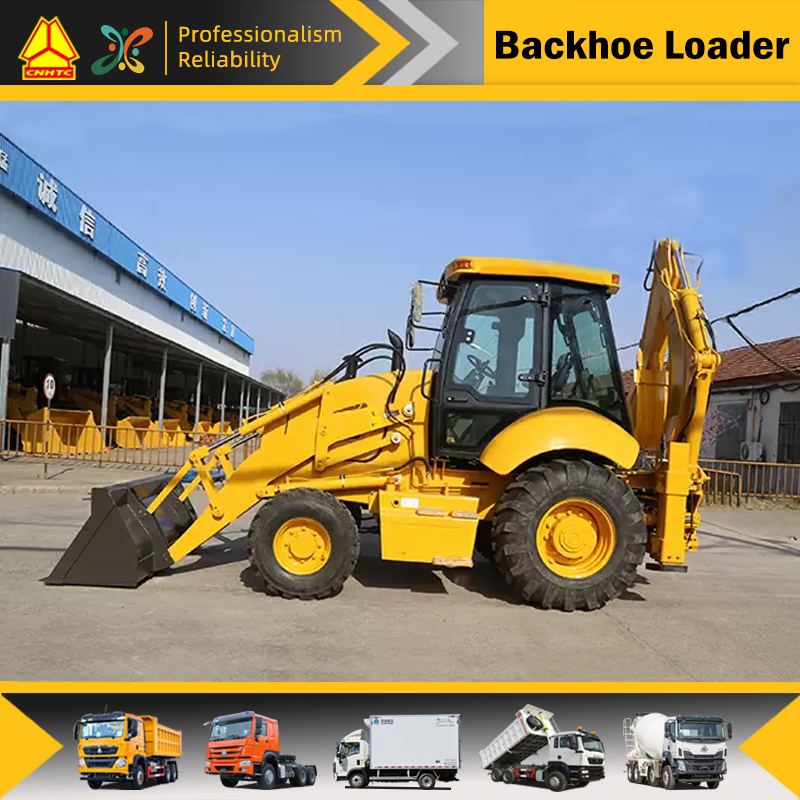

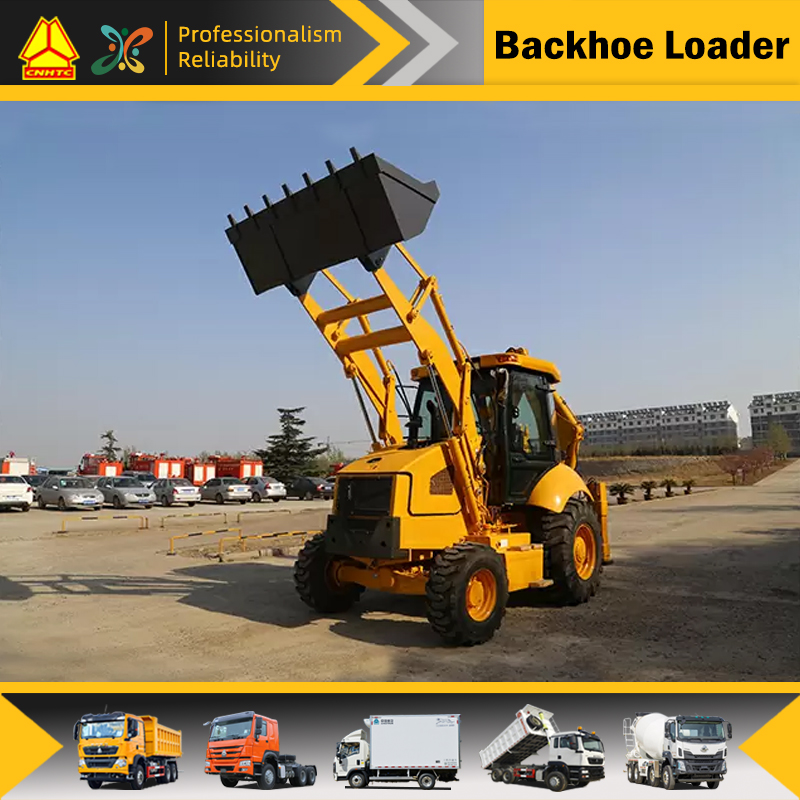

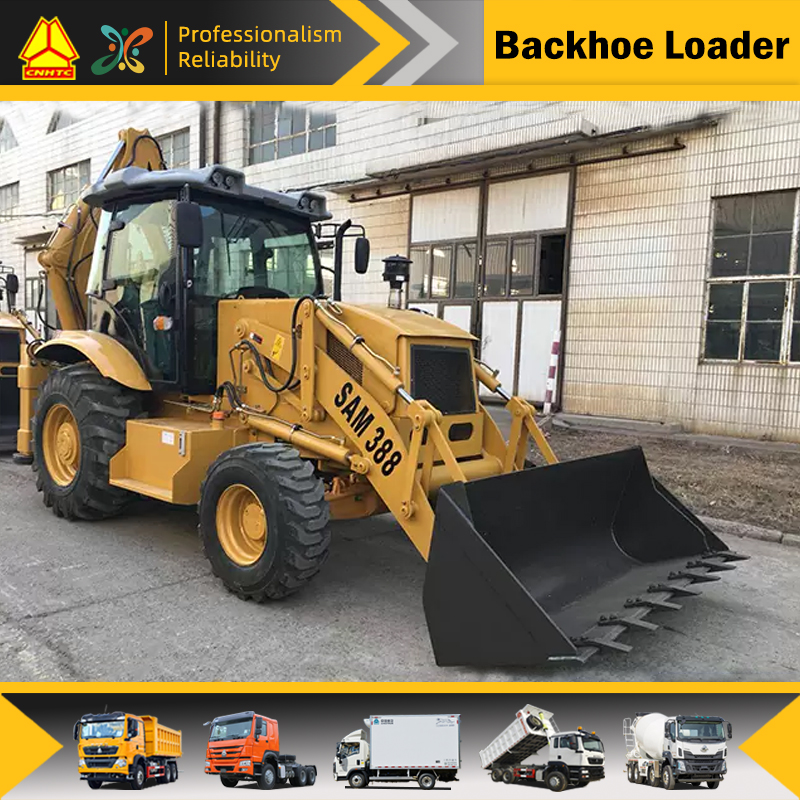

SAM388 Backhoe Loader

Covering a wide range of vehicle models including dump trucks, tractors, etc., we provide a full-process car buying experience with a mature sales team, remote technical services and after-sales guarantees. For detailed consultation, please feel free to contact us online at any time.

Classification
Earth-moving Machinery

PRODUCT DESCRIPTION


Our products include loaders, bulldozers, road rollers, graders, structural parts, work tools and other components. Shangong Machinery has a variety of wheel loaders, road rollers, graders and track-type tractors. All products meet or exceed the quality and reliability requirements of the local industry to meet the needs of customers in China and the global construction machinery industry.

China Small Backhoe Loader Excavator Compact Integral Chassis 2.5ton 100hp SAM388

1.The supercharged engine 75kw, high reliability of the hydraulic torque converter and transmission to provide super power, increase engineering special bridge walk smoothly and high reliability.

2.Mining, loading all the pilot control function, lightweight flexible, high work efficiency.

3.Humanized design rotating vibration damping seat full toughened glass molding cab, grander vision, driving more comfortable.

4.Lateral sliding mechanism of the available device, make the digging work scope is larger and more efficient.

5.With differential, wet brake drive axle has greatly increased the traction performance and vehicle safety performance of the machine.


SAM388 BACKHOE LOADER SPECIFICATIONS
Overall Operating Weight8200KG
Transport Dimension
L*W*H6150×2250×3763mm
Wheel base2200mm
Min. Ground Clearance300mm
Bucket Capacity1.0m3
Breakout Force38KN
Loading Lifting Capacity2500KG
Bucket Dumping Height2742mm
Bucket Dumping Distance1062mm
Digging Depth52mm
Backhoe Capacity0.3 m3
Max. Digging Depth4082mm
Swing Angle of Excavator Grab190o
Max. Pulling Force39KN
Engine
ModeYC4A105Z-T20or cummins
Typeturbocharging four-stroke
Cylinder-Inside Diameter*Stroke4—105
Rated Power75KW/100HP
Rated Speed2400r/min
Min. Fuel Consumption235g/kw.h
Max.Torque310NM
Displacement4.3L
Steering System
Model of Steering DeviceBZZ5-250
Steering Angle±36 o
Min. turning radius6581mm
Pressure of the system12Mpa
Axle
ManufacturerFeicheng Axle Factory
Main Transmission TypeDouble Reduction
Final ReducerSingle Stage Final Reducer
Rated Loader of Axle4/18.5t
Transmission System
Torque Converter
ModelYJ280
TypeSingle-stage Three Elements
Max. Efficiency84.4%
Inlet Pressure0.4Mpa—0.55 Mpa
Outlet Pressure1.2Mpa—1.5 Mpa
Cooling MethodOil-cooling Pressure Circulation
Gearbox
TypeFixed Shaft Power Transmission
Oil Pressure of Clutch1373Kpa—1569 Kpa
GearsTwo Gears Ahead, Two Gears Astern
Max.Speed22Km/h
Tyre
Model14-17.5/19.5L-24
Pressure of Front wheel0.22 Mpa
Pressure of Back Wheel0.22 Mpa
Brake System
Service BrakeAir Over Oil Caliper Brake
External Type
Self-regulation
Self-balance
Emergency BrakeOperation Power Implementing brake
Manual Operation Power Terminating Brake
Hydraulic System
Digging Power of Excavator Grab46.5KN
Digging Power of Dipper31KN
Bucket Lifting Time5.4S
Bucket Lowering Time3.1S
Bucket Discharge Time2.0S
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Other products:

1. Dump Truck / Tipper Truck

2. Hohan tractor Truck/ prime mover truck

3. Truck with crane / Truck mounted crane

4. Oil Tank Truck / Fuel Tanker Truck

5. Water truck / Water Tank Truck / Water Sprinkler Truck

6. Concrete Mixer Truck

7. Van truck / Insulated truck/ Refrigeration truck

8. Fecal suction truck / Sewage suction truck

9. Cement Powder Tank truck/ Bulk cement trailer

10. High-altitude operation truck

11. Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )


PRODUCT DISPLAY

海报

PRODUCT PACKAGING

  • xiangcai (1)
  • xiangcai (2)
  • xiangcai (3)
  • xiangcai (4)
  • xiangcai (5)
  • xiangcai (6)
  • xiangcai (7)
  • xiangcai (8)
  • xiangcai (9)

APPLICATION

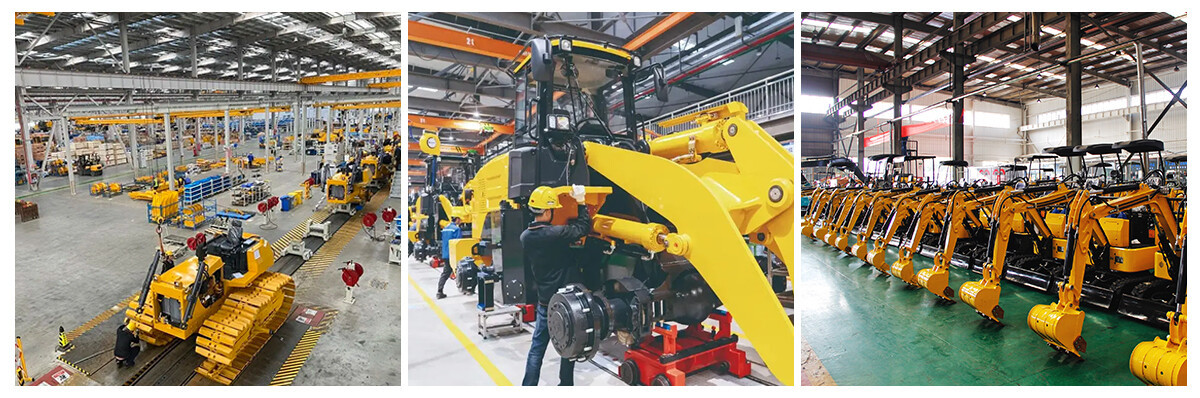

车间
